| Attribute | Value |
|---|---|
| Warranty | 1 Year |
| Weight (KG) | 100 |
| Core Components | Valve |
| Valve type | single valve & double valve |
| Machine Type | Drilling Tool |
| Processing Type | Forging |
| Use | Well Drilling |
| Condition | New |
| Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year |
| Applicable Industries | Manufacturing Plant |
| Showroom Location | None |

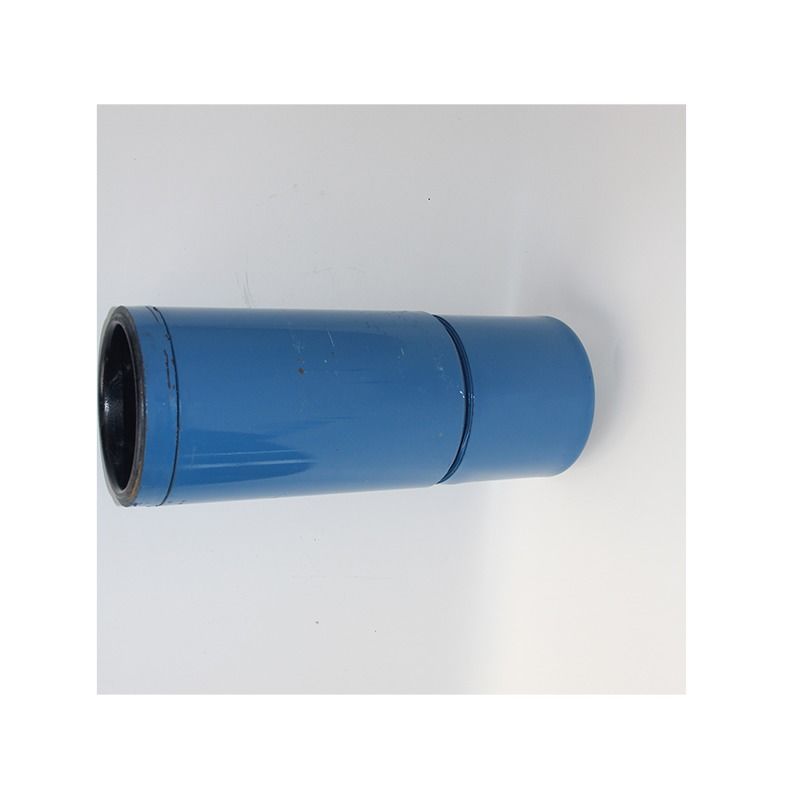

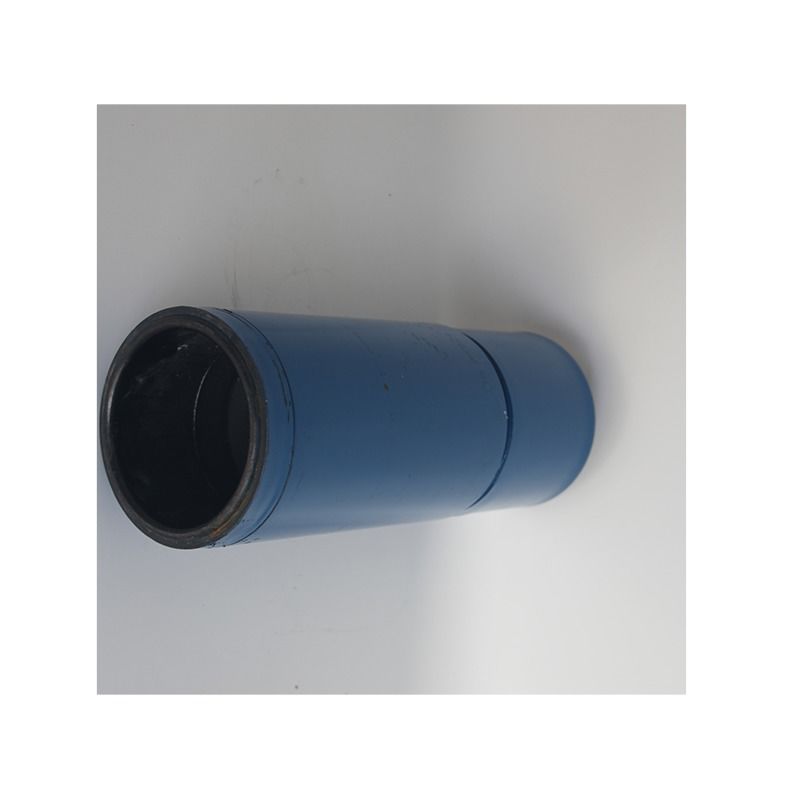

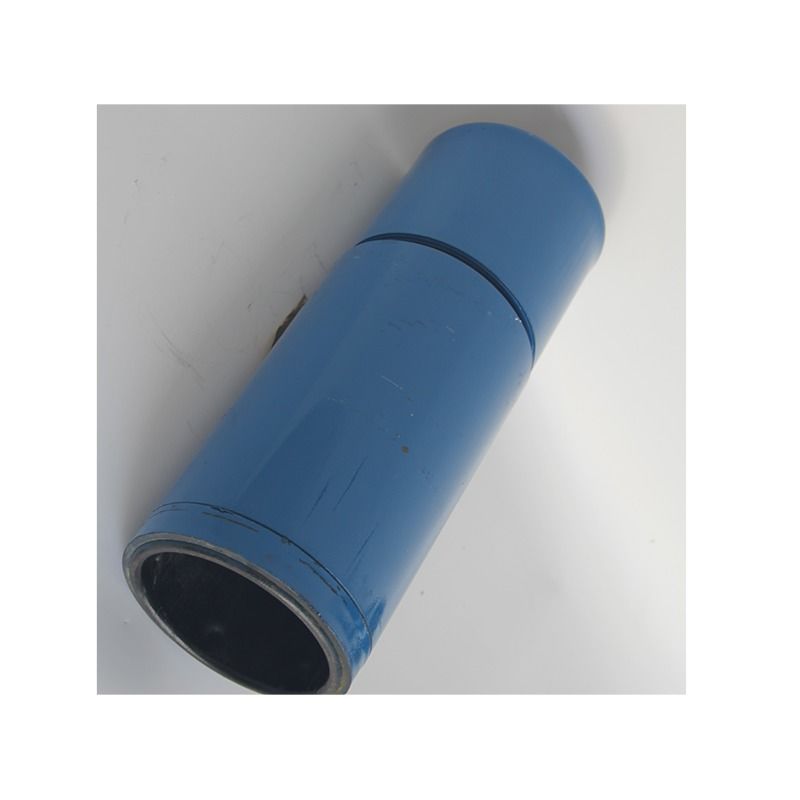

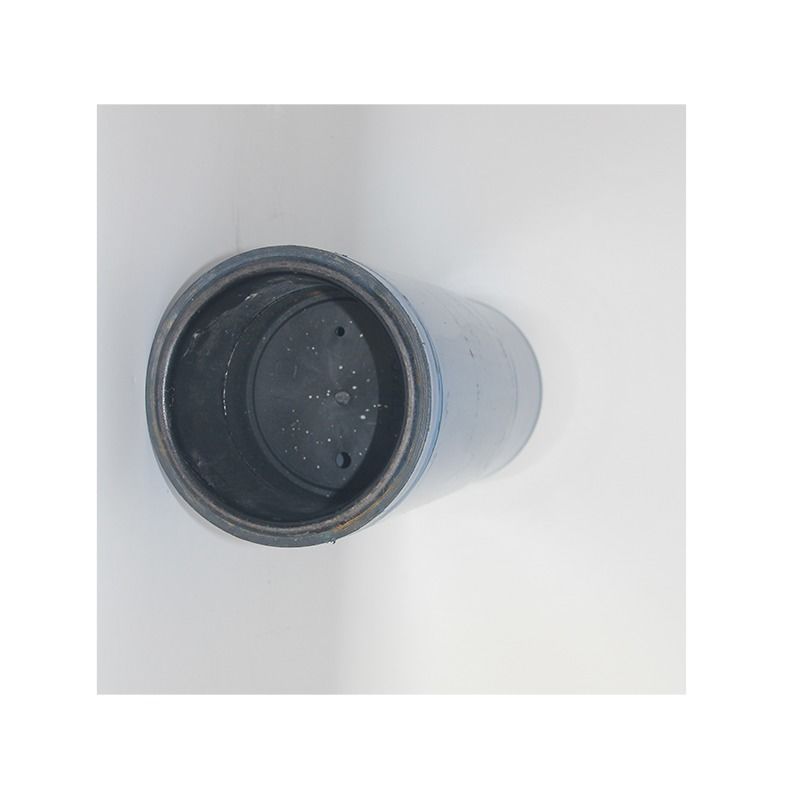

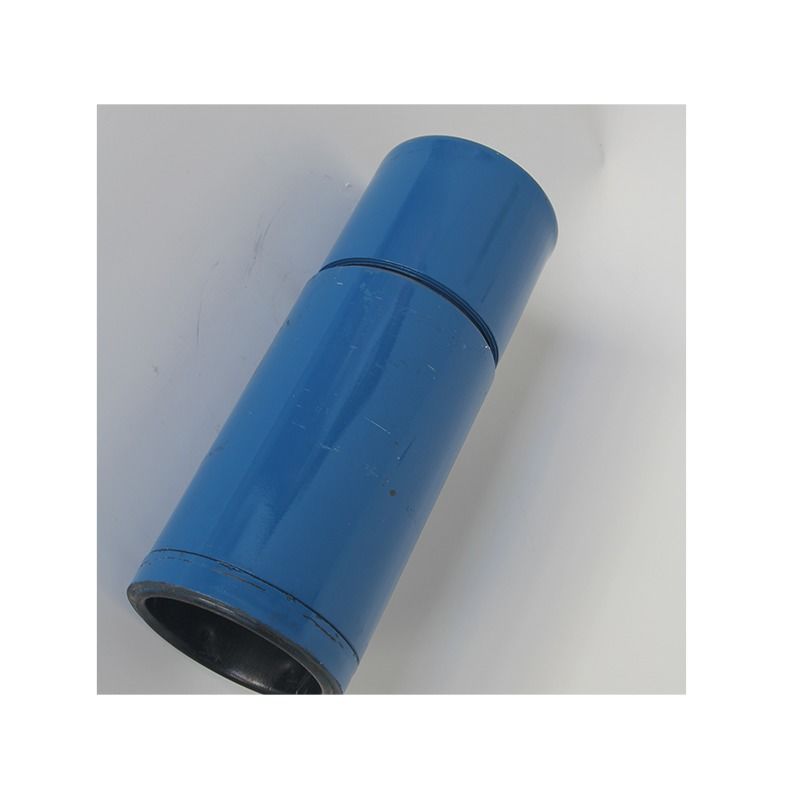

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.
| Name | Size(in) | Bore O.D.(in) | Bore I.D.(in) | Min Bore Parameter(in) | Thread Type | lb(in2) |
|---|---|---|---|---|---|---|
| Float Collar | 5 1/2" | 6" | 4 3/4" | 2" | 5 1/2" LCSG | 4351 |
| Float Collar | 7" | 7 5/8" | 6 1/4" | 2 3/8" | 7" LCSG | 3626 |
| Float Collar | 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | 9 5/8" LCSG | 3626 |
| Float Collar | 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | 13 3/8" LCSG | 3626 |
| Float Shoe | 5 1/2" | 6" | 4 3/4" | 2" | 5 1/2" LCSG | 4351 |
| Float Shoe | 7" | 7 5/8" | 6 1/4" | 2 3/8" | 7" LCSG | 3626 |
| Float Shoe | 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | 9 5/8" LCSG | 3626 |
| Float Shoe | 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | 13 3/8" LCSG | 3626 |
