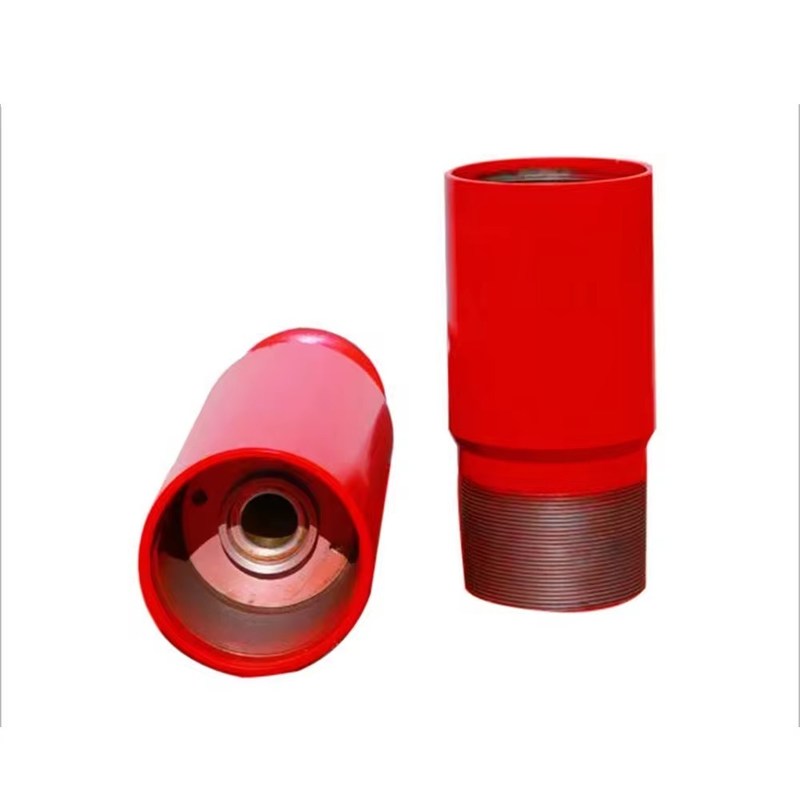

API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals

139.7mm Float Collar,150°C Seal Float Shoe,204°C Seal Cementing Float Equipment

150°C Seal Float Shoe

204°C Seal Cementing Float Equipment

مكان المنشأ:

جيانغسو ، الصين

اسم العلامة التجارية:

SWS

اتصل بنا

اطلب اقتباس

تفاصيل المنتج

البعد:

50*30*30

وزن:

10 كجم

المكونات الأساسية:

صمام

نوع الصمام:

صمام واحد وصمام مزدوج

نوع المعالجة:

تزوير

مواصفة:

2-3/8~20"

نوع الموضوع:

BTC\LTC\ موضوع خاص\EU\NU

الصف الصلب:

N80\L80\P110

تتحمل OD:

6 "

معرف التجويف:

4 3/4"

مين تحمل:

2 بوصة

نوع الموضوع:

5 1/2 "LCSG

تصنيف الضغط:

4351 رطل (IN2)

تصنيف درجة الحرارة:

204 درجة مئوية

مادة:

الألياف الفينولية

منتجات ذات صله

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

احصل على افضل سعر

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

احصل على افضل سعر

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

احصل على افضل سعر

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

احصل على افضل سعر

اتصل بنا

86-519-83553967

Leo@service-js.com

86-519-83553967

اتصل الآن

وصف المنتج

API Standard 5-1/2" (139.7mm) Oilfield Cementing Tools - Casing Stab-In Float Collar and Float Shoe

High-performance float equipment designed for primary cementing operations in oilfield applications.

Technical Specifications

Name	Size (in)	Bore O.D. (in)	Bore I.D. (in)	Min Bore Parameter (in)	Thread Type	lb/in²
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Key Features and Benefits

Essential component of casing equipment for primary cementing operations
Guides casing to total depth and prevents contaminated mud entry
Provides landing point for casing wiper plugs
Reinforces lower end of casing string for improved structural integrity
Ensures precise cement slurry displacement
Hi-Flow valves reduce fluid erosion and minimize pressure drop
Available in 70mm and 90mm sizes
PDC drillable composite plastic materials for valve components
Standard seal rated to 150°C with optional 204°C seal
Valve body molded with fiber phenolic for 70MPa and 204°C operation
High-quality Canadian phosphor bronze springs with excellent restoring force

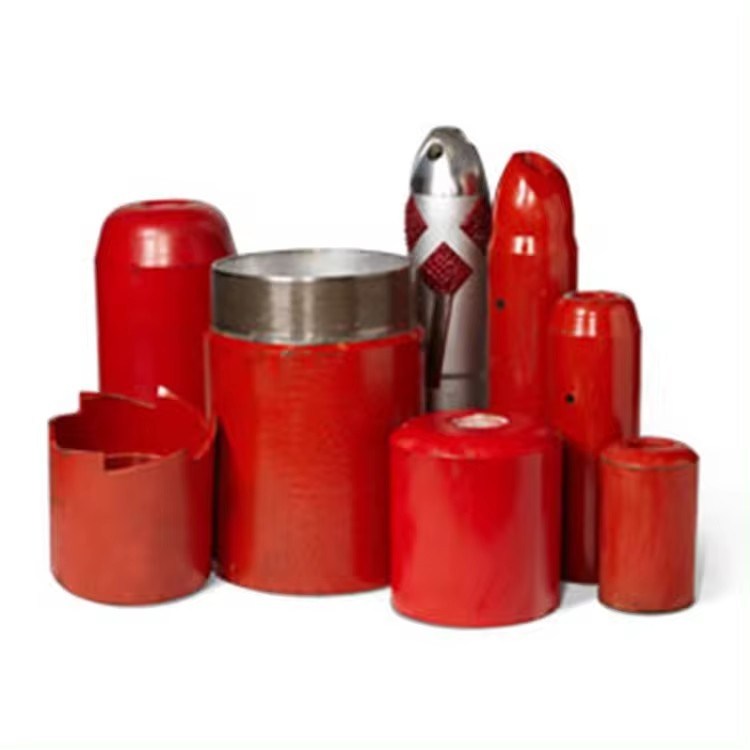

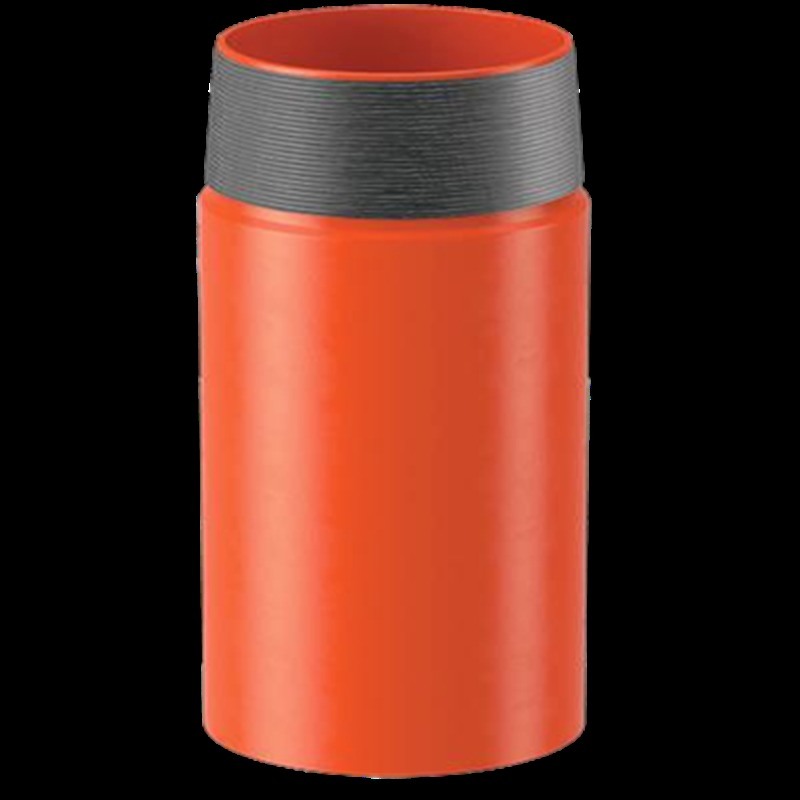

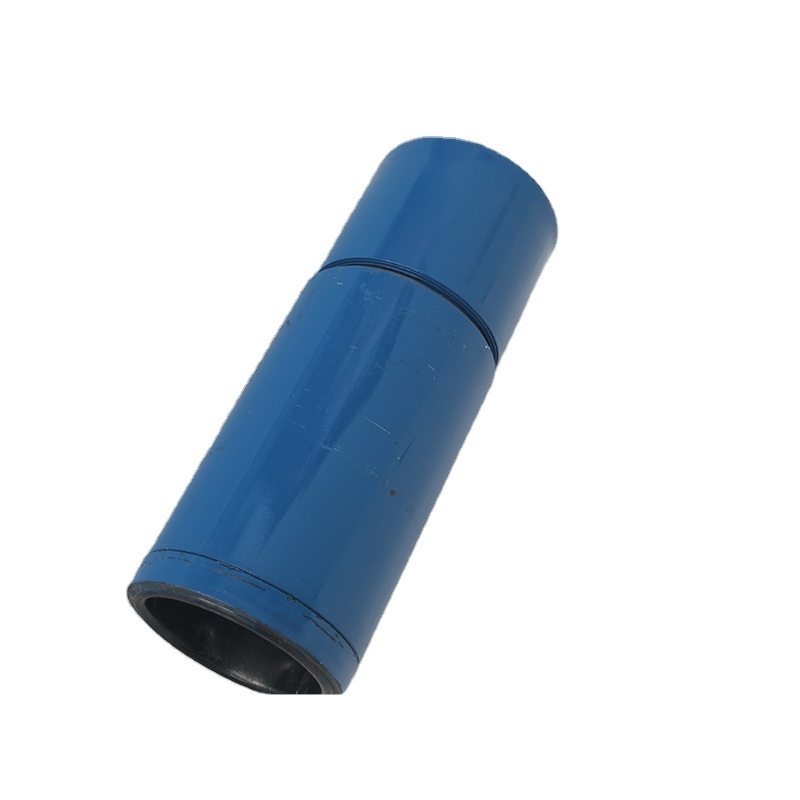

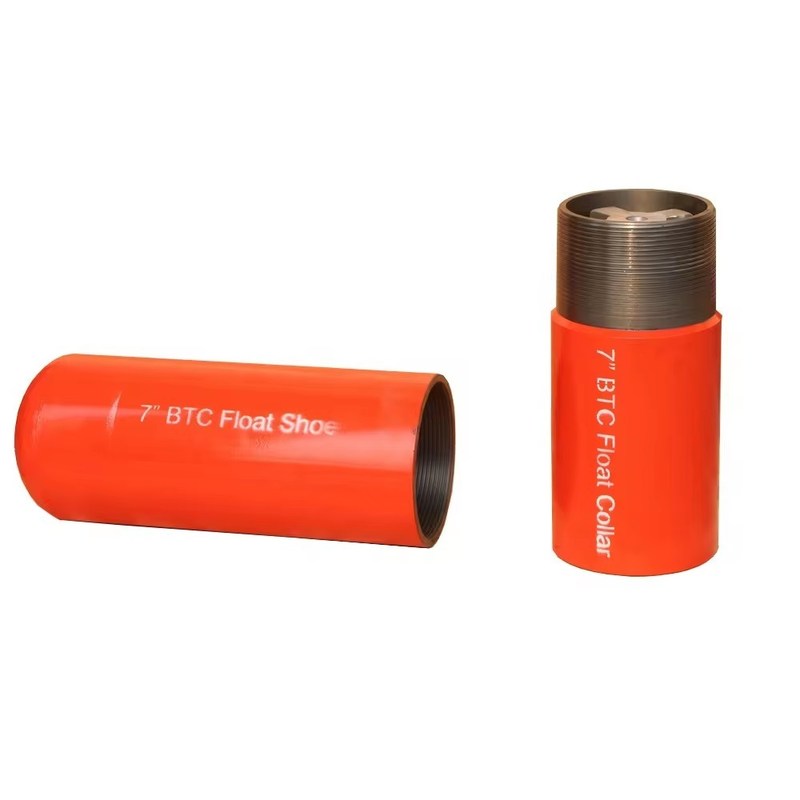

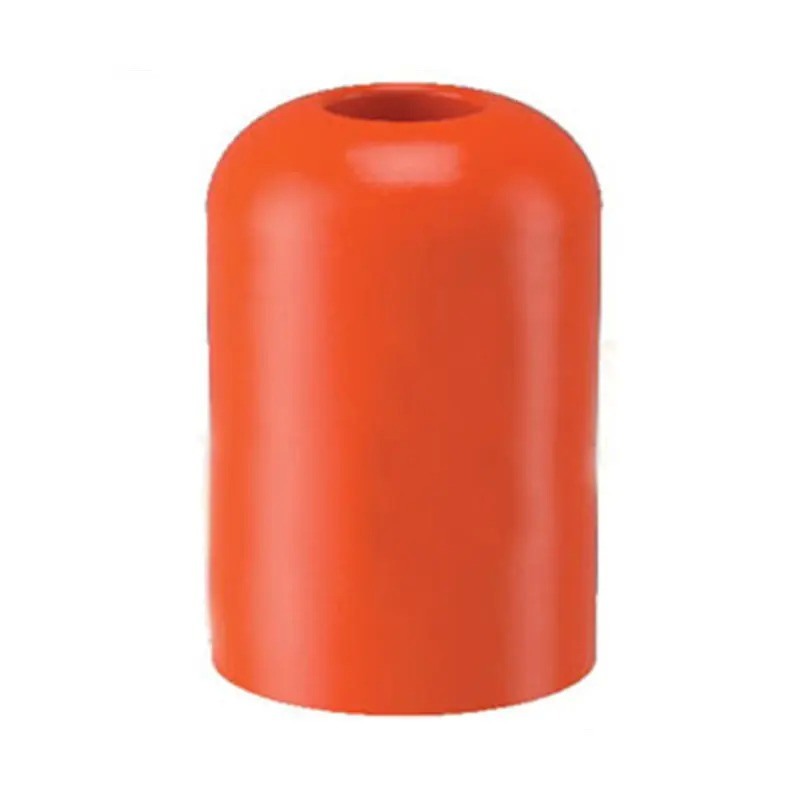

Product Images

Frequently Asked Questions

Q1: When can I get the price?

A: We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please indicate this in your email for priority handling.

Q2: Could I have prices of your products?

A: Absolutely. Please send us an email with your requirements, and we'll respond within 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, we offer volume discounts for larger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, our QC department conducts thorough inspections at each production stage and before shipment.

Q5: What about the lead time for mass production?

A: Production lead times vary depending on order quantity and seasonal demand factors.
