API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

114.3mm Float Shoe,150°C Seal Float Collar,204°C Seal Cementing Float Equipment

150°C Seal Float Collar

204°C Seal Cementing Float Equipment

مكان المنشأ:

جيانغسو ، الصين

اسم العلامة التجارية:

SWS

اتصل بنا

اطلب اقتباس

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

تفاصيل المنتج

البعد:

50*30*30

وزن:

10 كجم

المكونات الأساسية:

صمام

نوع الصمام:

صمام واحد وصمام مزدوج

نوع المعالجة:

تزوير

مواصفة:

2-3/8~20"

نوع الموضوع:

BTC\LTC\ موضوع خاص\EU\NU

الصف الصلب:

N80\L80\P110

تتحمل OD:

6 "، 7 5/8" ، 10 5/8 "، 14 3/8"

معرف التجويف:

4 3/4 "، 6 1/4" ، 8 5/8 "، 12 3/8"

مين تحمل:

2 "، 2 3/8"

نوع الموضوع:

5 1/2 "LCSG ، 7" LCSG ، 9 5/8 "LCSG ، 13 3/8" LCSG

تصنيف الضغط:

70MPA

تصنيف درجة الحرارة:

204 درجة مئوية

حجم الصمام:

70mm و 90mm

منتجات ذات صله

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

احصل على افضل سعر

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

احصل على افضل سعر

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

احصل على افضل سعر

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

احصل على افضل سعر

اتصل بنا

86-519-83553967

Leo@service-js.com

86-519-83553967

اتصل الآن

وصف المنتج

API 4-1/2" 114.3mm Standard Nose Float Shoe Equipment

High-performance reamer shoe, float shoe, and float collar for casing operations.

Technical Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Product Features

Essential component for primary cementing operations in casing equipment
Guides casing to total depth while preventing contaminated mud entry
Provides landing point for casing wiper plugs
Reinforces lower end of casing string for enhanced structural integrity
Ensures precise cement slurry displacement accuracy
Hi Flow valves minimize fluid erosion and pressure drop (available in 70mm and 90mm sizes)
PDC drillable composite plastic valve components
Standard seal rated to 150°C with optional 204°C seal available
Fiber phenolic valve body module withstands 70MPa and 204°C
High-quality Canadian phosphor bronze C510 springs with excellent restoring force
HNBR plunger seal top rated for 70MPa and 204°C operation

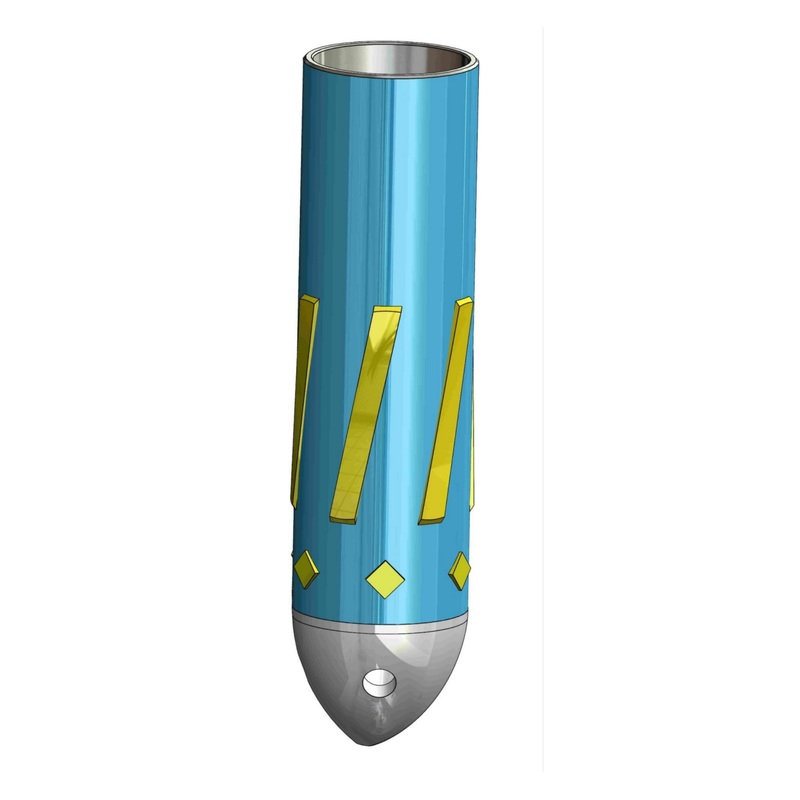

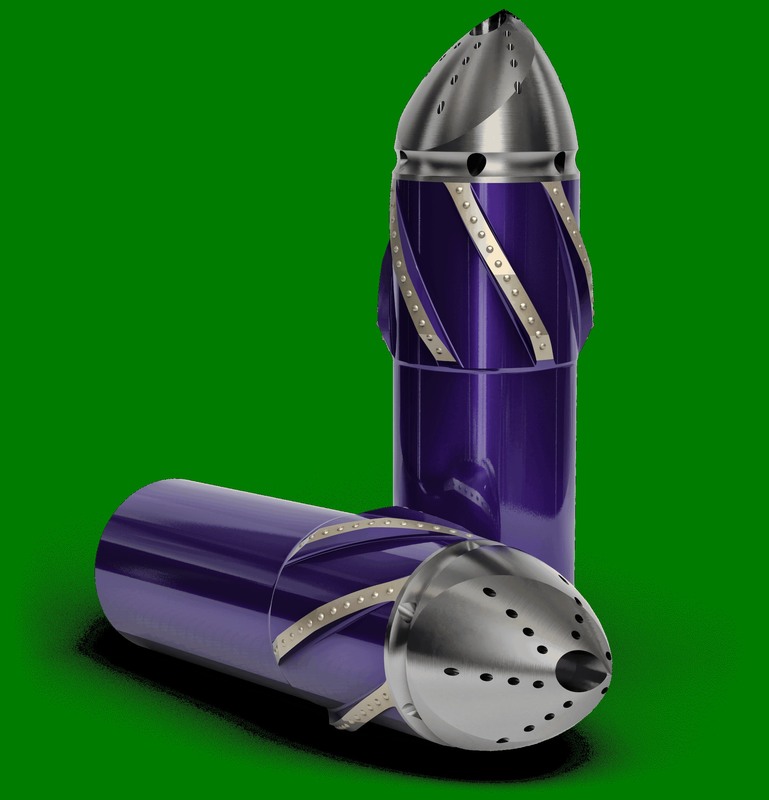

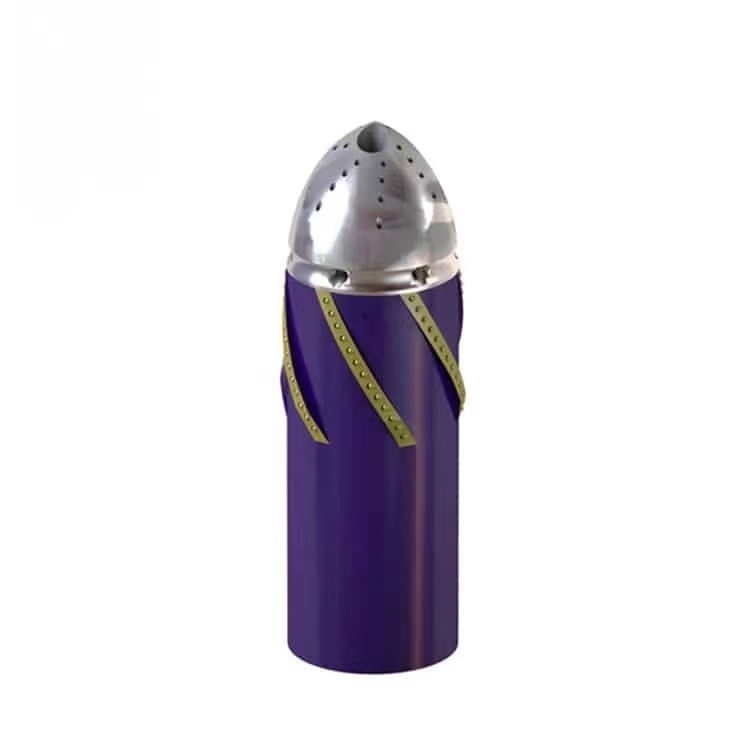

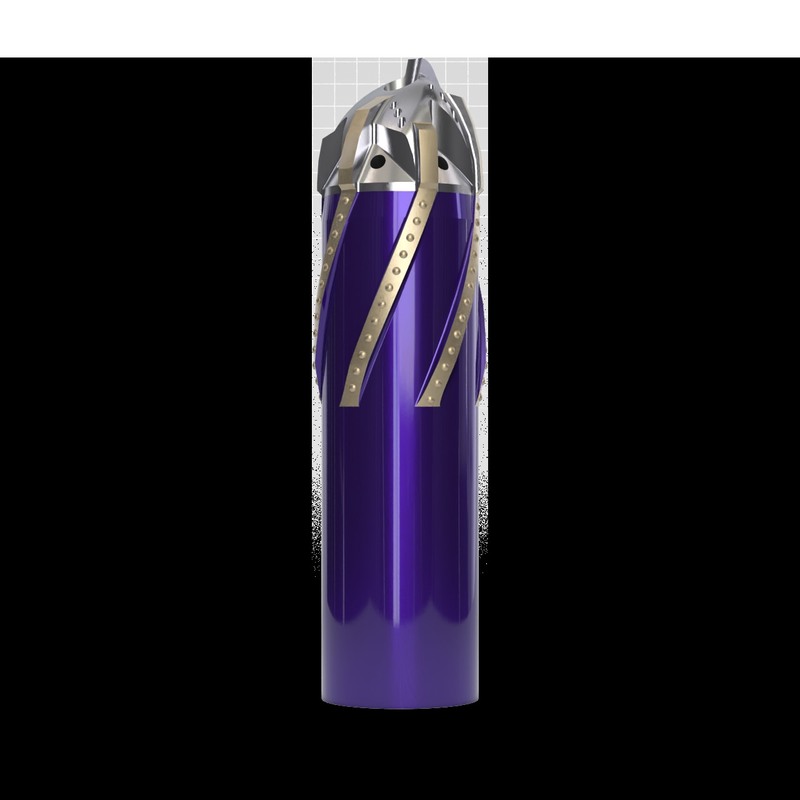

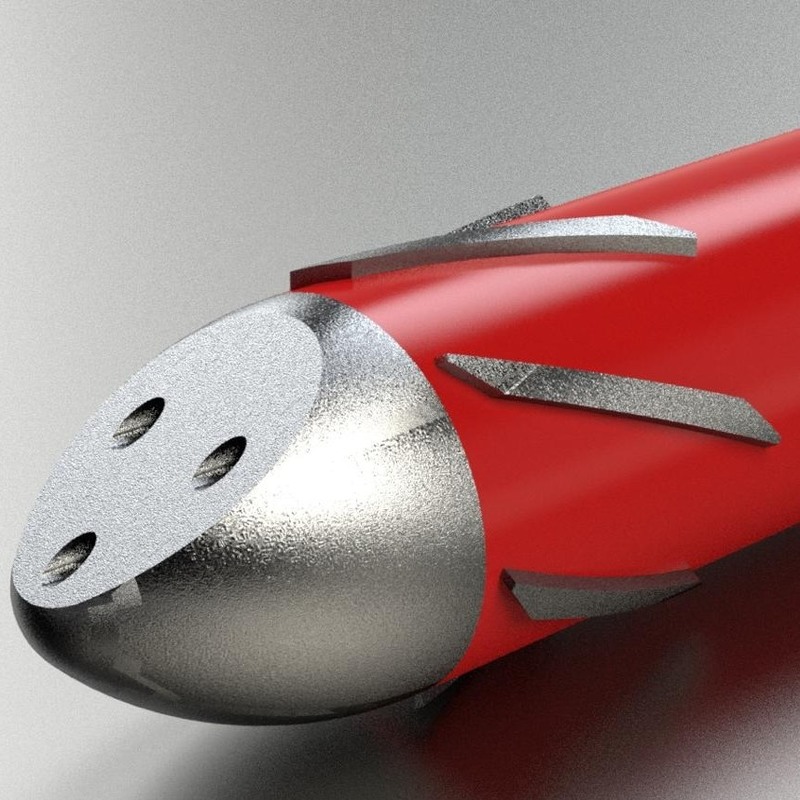

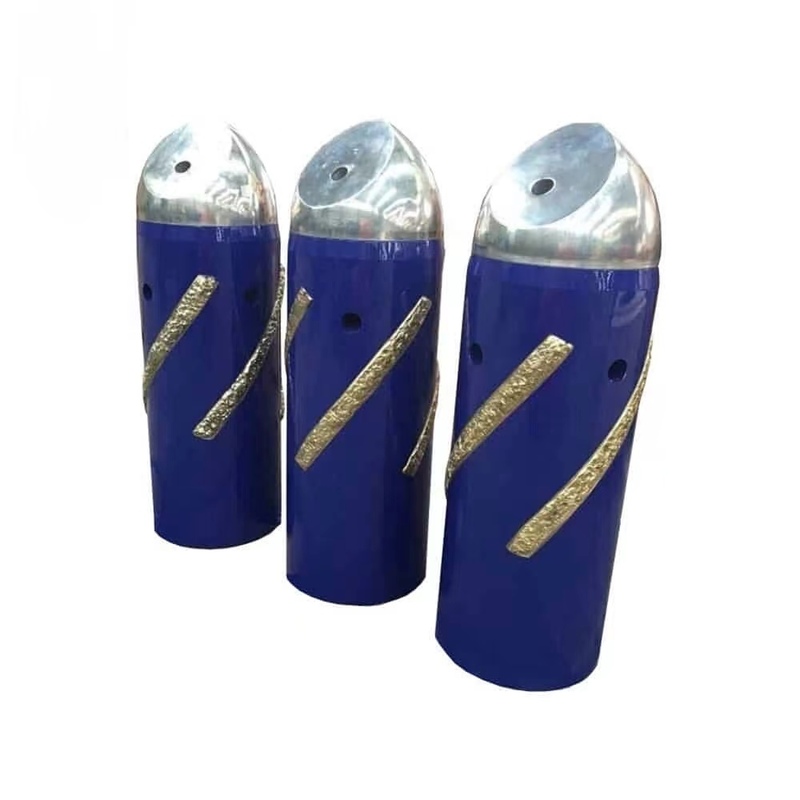

Product Images
